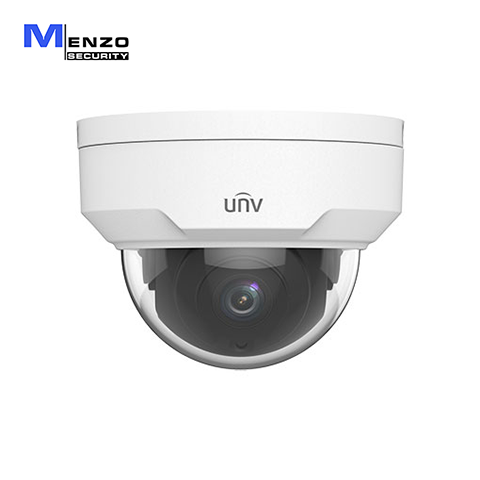

Caméra IP 4Mp Dôme IR30m Uniview

Caméra de surveillance IP 4Mp Dôme IR30m Uniview

IPC324LR3-VSPF28-D

Camera

Sensor1/3", progressive scan, 4.0 megapixel, CMOS

Lens2.8mm@F2.0

ShutterAuto/Manual, 1 ~ 1/100000s

Minimum IlluminationColour: 0.03Lux (F2.0, AGC ON)
0Lux with IR

Day/NightIR-cut filter with auto switch (ICR)

Digital noise reduction2D/3D DNR

S/N>52dB

IR RangeUp to 30m (98ft) IR range

Wavelength850nm

IR On/Off ControlAuto/Manual

DefogDigital Defog

WDRDWDR

Video

Video CompressionUltra 265, H.265, H.264, MJPEG

H.264 code profileBaseline profile, Main Profile

Frame RateMain Stream: 4MP (2592*1520), Max 20fps;
Sub Stream: 720P (1280*720), Max 20fps;
Third Stream: D1 (720*576), Max 20fps

Video Bit Rate128 Kbps~16 Mbps

OSDUp to 4 OSDs

Privacy MaskUp to 4 areas

ROIUp to 2 areas

Motion DetectionUp to 4 areas


White BalanceAuto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Digital noise reduction2D/3D DNR

Smart IRSupport

FlipNormal/Vertical/Horizontal/180°

DewarpingNA

HLCSupported

BLCSupported

Network

ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS

Compatible IntegrationONVIF (Profile S, Profile T), API

ClientEZStation
EZView
EZLive

Web BrowserPlug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below

Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+

Interface

Network1 RJ45 100M Base-TX Ethernet

Certifications

CertificationsCE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15

General

PowerDC 12V±25%, PoE (IEEE 802.3af)

Power consumption: Max 4W

Dimensions (Ø x H)Φ109 x 81mm (Ø4.3” x 3.2”)

Net Weight0.45kg (0.99lb)

MaterialMetal + Plastic

Working Environment-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Strorage Environment-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Surge Protection2KV

Ingress ProtectionIP67

Vandal ResistantIK10
